JQY-1 Fluid Sampler Probe | Geotech Instrument Co., Ltd.

PRODUCT PARAMETERS

High torque motor drives the ball screw
Sample capacity 1L, larger chambers can be customized

GET A QUOTE

Description

FAQ

Get A Quote

Description

Abstract

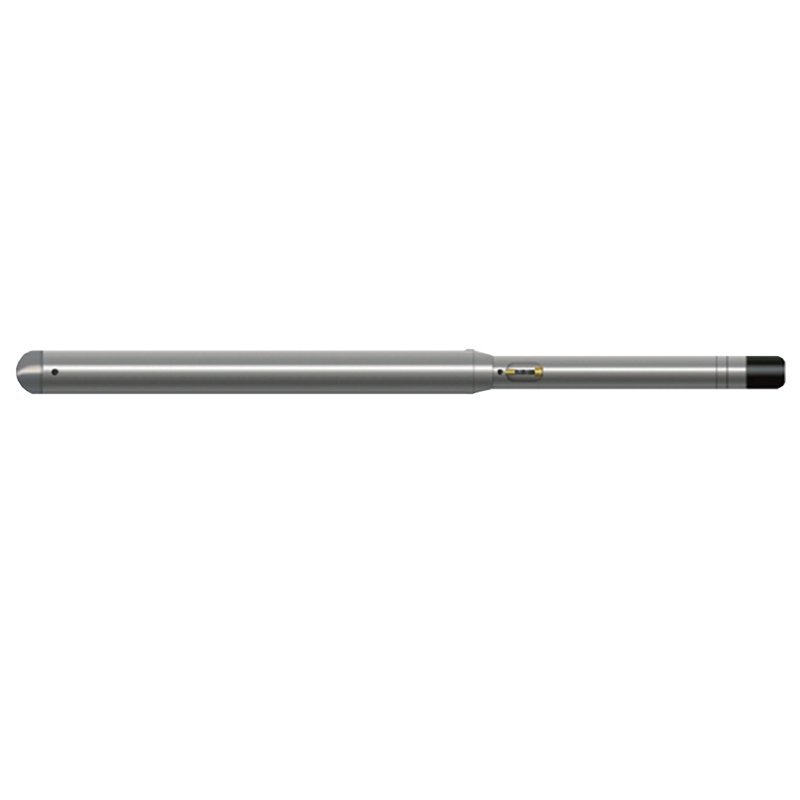

JQY-1 Fluid Sampler Probe is a probe tube with an electric valve installed on the cavity. Before the probe tube is placed in the borehole, the valve remains normally closed. The winch lowers the probe tube to the specified depth. The computer activates the electric valve on the probe tube through the software. After the cavity is filled with fluid, the electric valve on the probe tube is activated again through the software to keep it normally closed. Then the probe tube is taken out and the manual valve at the bottom of the probe tube is used to pour the sample.

Applicable Conditions

● Cased

● Bare hole fill with water

● Bare Dry hole

Applications

● Groundwater and well water quality surveys

● Environmental investigation

● Investigate water quality conditions at different depths

● Field sampling laboratory analysis

Features

● High torque motor drives the ball screw

● Sample capacity 1L, larger chambers can be customized

Specifications

Volume	1L
Valve drive	Motor drive
Signal output	Bipolar encoding

FAQ

In gravity exploration (SI), what is the unit of gravity? How to convert gravity units between SI and CGS?

What are gravitational field and gravitational potential?

What is the normal gravity field of the earth? What are the rules for the change of the normal gravity field with latitude and altitude?

① The normal gravity field of the earth: Assuming that the earth is a rotating ellipsoid (reference plane), the surface is glossy, the internal density is uniform, or it is distributed in concentric layers, the density of each layer is uniform, and the deviation of the shape of the ellipsoid from the geoid is very small, then the gravity field generated by the earth is the normal gravity field.
② The normal gravity value is only related to the latitude, the smallest at the equator and the largest at the poles, with a difference of about 50,000 g.u.; the rate of change of the normal gravity value with latitude is the largest at 45° latitude, and zero at the equator and the poles; the normal gravity value decreases with increasing altitude, and its rate of change is -3.086 g.u.. The main feature of the long-term change is the "westward drift" of the geomagnetic elements, both the dipole field and the non-dipole field drift westward, and have a global nature.

What is the relationship between gravitational field strength and gravitational acceleration?

What is gravity exploration?
