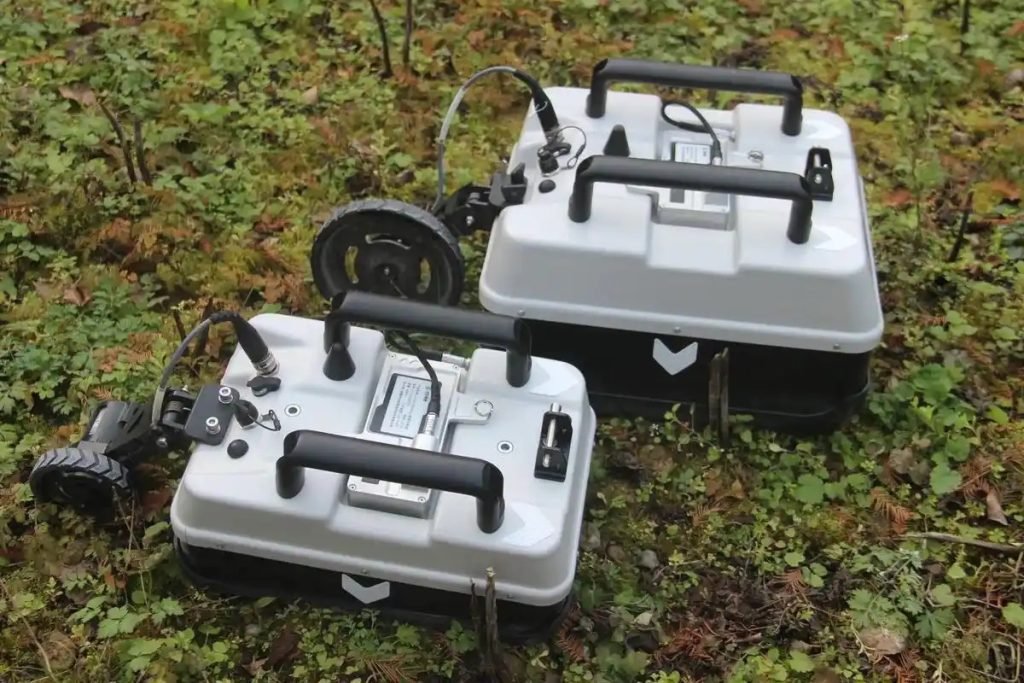

【Geological Radar Information】Key Points and Techniques of Geological Radar Product Design

With the development of science and technology and the increasing demand for geological research, geological radar has become a very important geological exploration tool. Geological radar can obtain the distribution of underground materials through the emission and reception of electromagnetic waves, thereby helping geologists to conduct geological exploration and underground resource detection. This article will introduce some key points and techniques of geological radar product design in Shandong geological radar detection.

First of all, in the design of geological radar products, the key point is to choose a suitable operating frequency. Different geological environments have different characteristics for the propagation and reflection of electromagnetic waves, so it is necessary to choose a suitable operating frequency according to the specific application scenario. For Shandong geological radar detection, a lower operating frequency can generally be selected to obtain better penetration depth and resolution.

Secondly, the antenna design of the geological radar is also very important. The antenna is the transmitting and receiving device of electromagnetic waves in the geological radar, which affects the accuracy and effect of the detection. When designing the antenna, it is necessary to consider the antenna’s frequency response, radiation pattern, gain and other parameters, as well as the size and shape of the antenna. For Shandong geological radar detection, a wide-band antenna can generally be selected to adapt to work at different frequencies.

In addition, the design of geological radar products also needs to take into account the technology of data acquisition and processing. In terms of data acquisition, it is necessary to select appropriate sampling rate and sampling depth to obtain sufficient data information. In terms of data processing, signal processing algorithms and image processing techniques can be used to filter, denoise and reconstruct the collected data to improve the visualization and interpretability of the data.

Finally, the design of geological radar products also needs to focus on practicality and portability. Geological exploration work is generally carried out outdoors, so geological radar needs to have certain waterproof, durable and portable characteristics. When designing, lightweight materials and structures, as well as reasonable power management and data storage solutions can be selected to facilitate users to use and carry in the field.

In summary, the key points and techniques of geological radar product design include selecting appropriate operating frequencies, designing optimized antennas, data acquisition and processing technologies, and focusing on practicality and portability. Through reasonable design and optimization, Geotech’s geological radar products can better meet the needs of geological exploration and improve exploration efficiency and accuracy.

This article introduces the key points and techniques of Geotech’s geological radar product design. As an important geological exploration tool, geological radar plays a key role in the detection of underground materials. The article introduces in detail the selection of appropriate operating frequency, optimization of antenna design, data acquisition and processing technology, and practicality and portability. Through reasonable design and optimization, geological radar products can be better applied to Shandong geological radar detection and improve exploration efficiency and accuracy.
