Cutting-Edge Applications in Geophysical Exploration Equipment

Introduction

In the field of geophysical exploration, accurately understanding the subsurface geological structure is crucial for various engineering projects. Electrical Resistivity Tomography (ERT) technology, as an advanced geophysical exploration method, has gained widespread application in recent years. Geotech Instrument Co., Ltd., as a high-tech enterprise specializing in the sales and technical services of geophysical exploration and engineering geophysical equipment, is dedicated to providing customers with high-quality ERT equipment and related technical support to facilitate efficient geophysical exploration.

Overview of Electrical Resistivity Tomography Technology

ERT is a geophysical prospecting method based on the resistivity differences of different geological bodies. By arranging electrode arrays on the surface, applying current to the subsurface, and measuring voltage responses, the resistivity distribution of subsurface materials can be calculated. After professional software inversion processing, these data can generate 2D or 3D images of subsurface resistivity distribution, intuitively showing the spatial location, shape, and physical properties of subsurface geological bodies.

Geotech’s Electrical Resistivity Tomography Equipment

Geotech offers a range of advanced ERT equipment to meet diverse geophysical exploration needs. Our product portfolio includes electrical exploration instruments, magnetic exploration instruments, seismographs, ground-penetrating radars, and well logging exploration instruments, covering methods such as resistivity, magnetic field, seismic wave, and radar exploration. These devices are characterized by high precision, high stability, and ease of operation, making them suitable for numerous fields such as geotechnical investigation for construction projects, mineral resource exploration, environmental geological surveys, geological surveys for water conservancy projects, and geological hazard prevention.

Most common configurations

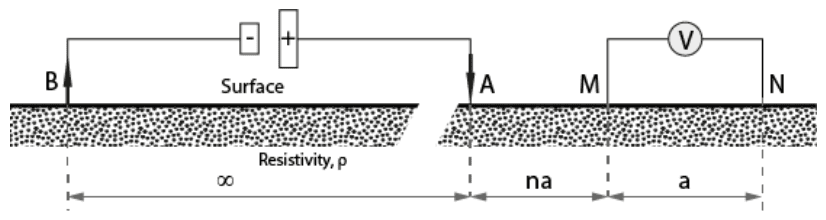

Pole-dipole
Pole-dipole

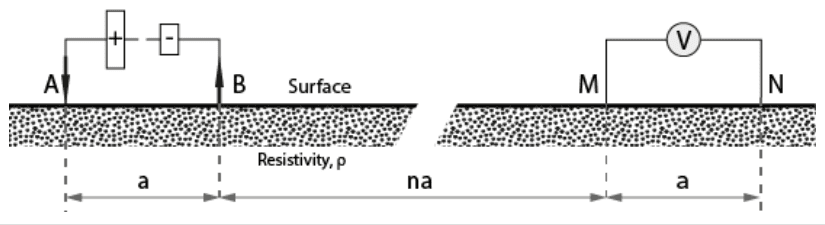

Dipole-dipole
Dipole-dipole
Wenner
Wenner

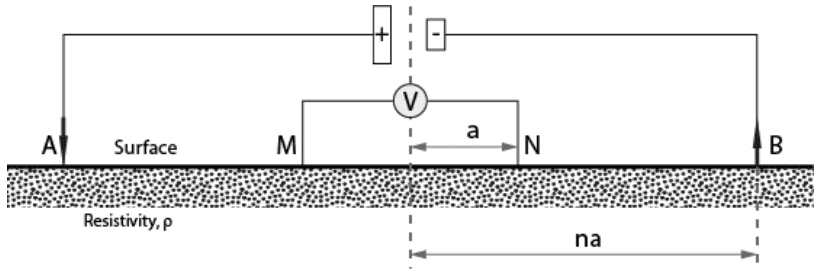

Schlumberger
Schlumberger

Advantages of Electrical Resistivity Tomography Technology

  • High Resolution and Depth Exploration Capability : It can clearly distinguish subtle structural differences between different subsurface geological bodies and explore deeper geological information, providing comprehensive and accurate geological evidence for engineering projects.
  • Non-contact Exploration and Environmental Friendliness : It avoids large-scale surface destruction, aligns with the modern green development concept, and is particularly suitable for geological surveys in ecologically fragile and urban built-up areas.
  • Rapid and Efficient Data Acquisition : Compared with other geophysical methods, ERT enables fast data acquisition, efficiently obtaining a vast amount of geological information in a short time, enhancing survey work efficiency and reducing project timelines.

Applications of Electrical Resistivity Tomography Technology

  • Geotechnical Investigation for Construction Projects : For large-scale constructions like high-rise buildings, bridges, and dams, ERT can accurately detect the depth of bedrock, locations of weak interlayers, and subsurface karst caves, offering scientific evidence for foundation design and ensuring the stability and safety of structures.
  • Mineral Resource Exploration : ERT can effectively identify resistivity differences between ore bodies and surrounding rocks, delineate ore body boundaries, and assess ore body size and grade, improving exploration efficiency and reducing costs.
  • Environmental Geological Surveys : In environmental pollution management and site remediation, ERT can detect the extent of groundwater contamination, pollutant migration pathways, and the spread of leachate from abandoned mines and landfills.
  • Geological Surveys for Water Conservancy Projects : ERT can investigate subsurface fracture development, karst geological conditions, and stratum permeability, providing crucial references for seepage prevention design and construction optimization in water conservancy projects and ensuring their safe operation.
  • Geological Hazard Prevention : ERT can monitor real-time changes in subsurface soil moisture content, the location of sliding surfaces, and deformation characteristics of rock and soil masses, promptly identifying geological hazard risks and providing valuable time for prevention efforts.

Working Principle and Process of Electrical Resistivity Tomography Technology

  • Electrode Arrangement and Data Acquisition : Based on survey objectives and site conditions, reasonably determine the number, spacing, and arrangement of electrodes. By applying current through selected electrode pairs and measuring voltage values between other electrode pairs, a large amount of resistivity data can be recorded.
  • Data Processing and Inversion : The collected raw resistivity data requires preprocessing, including filtering, error correction, and normalization, to enhance data quality. Then, using specialized resistivity inversion software and appropriate inversion algorithms, the processed data can be transformed into a subsurface resistivity distribution model.
  • Technological Innovation and Integration : ERT technology will deeply integrate with other geophysical methods to form a comprehensive geophysical exploration system with multiple methods and parameters. Meanwhile, emerging technologies like artificial intelligence and big data will gradually be applied in resistivity data processing and inversion.
  • Equipment Performance Enhancement : Future ERT instruments will develop towards higher precision, automation, and portability. The development of new electrode materials and coupling technologies will improve signal transmission efficiency and stability, reducing external interference.
  • Industry Application Expansion : ERT technology will play an increasingly important role in emerging fields such as new energy development, underground space utilization, and archaeological exploration.

Geotech Instrument Co., Ltd.’s Professional Advantages

  • Diverse Equipment Product Line : Geotech’s product system covers electrical, magnetic, seismic, and radar series, meeting diverse customer needs. Whether you require electrical, magnetic, seismic, radar, or well logging exploration instruments, we offer high-quality equipment options.
  • Professional Technical Support : Our professional technical team provides comprehensive support and training services. From equipment installation, commissioning, operation to data processing and interpretation, we offer detailed guidance to ensure customers can fully utilize our equipment for efficient geophysical exploration.
  • Perfect After-Sales Service : Geotech values the post-purchase experience of every customer and provides robust after-sales service guarantees. We promise timely responses to equipment malfunctions and offer repair services, while regularly following up with customers to understand equipment usage and address their questions, ensuring optimal equipment operation.

Selecting the Right Electrical Resistivity Tomography Equipment

  • Clarify Survey Requirements and Objectives : Before choosing equipment, clearly define your survey purpose and target depth. Different survey tasks have varying equipment performance requirements. For instance, deeper geological structure detection may require equipment with higher transmission power and longer electrode arrays.
  • Consider Equipment Precision and Resolution : Equipment precision and resolution directly impact survey result accuracy. High-precision devices can more accurately measure resistivity data and generate clearer geological images, aiding in more precise geological body identification.
  • Focus on Equipment Operational Convenience and Portability : In fieldwork environments, operational convenience and portability are crucial. Selecting easy-to-operate, lightweight, and compact equipment can reduce staff burdens and improve work efficiency.
  • Evaluate Equipment Stability and Reliability : Equipment must maintain stability and reliability in complex field conditions and during extended operation. Choosing well-established brands with good market reputations can minimize fault risks and ensure smooth survey progress.
  • Consult Professionals and Refer to User Reviews : Before making a purchasing decision, consult geophysical exploration professionals to understand their equipment usage experiences and recommendations. Additionally, refer to user reviews and feedback to assess actual equipment performance, aiding in the selection of the most suitable equipment for your needs.

Future Outlook and Industry Impact of Electrical Resistivity Tomography Technology

With advancing technology and increasing demand for underground resource development, ERT technology is poised for broader application prospects. In the future, ERT technology will significantly impact the industry in the following ways:

  • Driving Technological Upgrades in the Geophysical Exploration Industry : As an efficient, precise, and environmentally friendly geophysical exploration method, the widespread application of ERT technology will encourage greater technological innovation investments in the geophysical exploration industry, enhancing overall technological levels and service quality.
  • Boosting New Energy Development and Sustainable Growth : Amid the global energy transition, new energy utilization and development have become crucial. ERT technology holds significant potential in geothermal resource exploration and underground energy storage site selection.
  • Promoting Safe and Efficient Utilization of Underground Space : As urbanization accelerates, underground space development gains importance. ERT technology can effectively detect subsurface karst caves, fractured zones, pipelines, and other obstacles and geological hazards, providing detailed and accurate geological information for underground space planning, design, and construction.

Conclusion

ERT technology, as a key method in geophysical exploration, offers unique advantages and broad application prospects, paving new ways for exploring the subsurface world. Geotech Instrument Co., Ltd., as a professional seller of geophysical exploration equipment, is committed to providing advanced ERT equipment and technical services to help customers achieve efficient and accurate geophysical exploration goals. We believe that, under technological guidance, ERT technology will continue to innovate and improve, contributing more to the development of the geophysical exploration industry and human sustainable development.

Choosing Geotech’s ERT equipment means selecting a reliable technical partner. We look forward to collaborating with you to explore the mysteries of the subsurface world and providing solid geological assurance for various engineering projects.

GIM-10 Multi-channel Resistivity & IP Meter
