WGMD-4 centralized electrical method system

WGMD-4 centralized high-density electrical method system

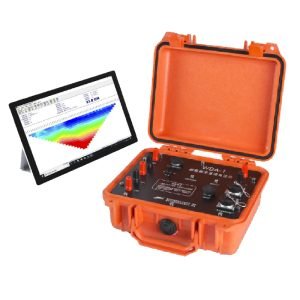

GMD-4 centralized high-density electrical method system is a high-density electrical method system composed of a set of combined equipment. The system uses WDJD-4 multi-function digital DC induced polarization instrument as the measurement and control host, and is equipped with multi-channel electrode converters, centralized high-density cables, and electrodes to form a high-density electrical method system. The system has the characteristics of large storage capacity, accurate and fast measurement, and easy operation. It can be easily used with commonly used high-density electrical method processing software, making the analysis work more convenient and intuitive.

System components and functions	WGMD-4 centralized high-density electrical method system
Host	WDJD-4 multi-function digital DC induced polarization instrument
Converter or adapter	WDZJ-60/WDZJ-120 multi-channel electrode converter
DC high voltage power supply	External
Cable, electrode	Centralized high-density cable, electrode

Working principle

Resistivity sounding method does not take in to account horizontal changes in thesubsurface resistivity. While 2d electrical imaging method with the resistivity changes in vertical as well as horizontal directions along the survey line.

Typical 1D resistivity sounding surveys usually involve about 10 to 20 readings, which 2-D imaging survey can finish thousand of points with different configuration. So the working efficiency improved greatly.

Applications

● Metal and nonmetal mineral resources detection

● City geophysical exploration, railway and bridge inspection

● Hydrology and engineering geology as seeking for ground water, inspecting dam base and flood protection levee for incipient faults

● Geothermal prospecting

● Landslides and other geological disaster exploration

Arrays

Features

● Transmitting unit and receiving unit are of all-in-one design, portable and lightweight.

● Super high-power, high anti-interference performance and precision: up to 6600w (1100v×6A) power, 48Vp-p voltage range ensures to get a good result in a area with high resistance.

● Automatically achieving compensation of self-potential, drift and electrode polarization, up to ±10V.

● Receiving unit support transient over-voltage protection, transmitting unit supports over-voltage protection, over-current protection and AB open-circuit protection.

● For general resistivity and IP survey function, 9 types of electrode arrays are available. Electrode distance (namely “Program”) can be inputted or called. Geometric factor can also be generated automatically or calculated manually.

● For multi-electrode 2D resistivity imaging, up to 18 electrode arrays are available. It could scanning measure according to fixed section (including AMNB, ABMN, AMBN,AMN, MNB, A-MN-B, Sp M, Sp MN, charge M, charge MN) or continuous rolling scanning measure according to variable section (including A-M, A-MN, AB-M, AB-MN, MN-B, A-MN rectangle).

● Program: the program can memorize 100 groups of electrode distances, avoiding repetitive input. Or you just input a program Id and step to call the corresponding electrode distances.

● Earth resistance inspection: ground condition can be inspected at any time.

● Mass data storage: Up to 1GB capacity (extended) enable store 5,000,000 groups measuring data (including current, voltage, SP, Ro, Ms, metal factor, TH, R, J).

● All parameter and data are under power-failure protection; and thus data will not be lost even thought the system shuts down accidentally.

● USB port enables it to transfer data to computer.

Detailed description

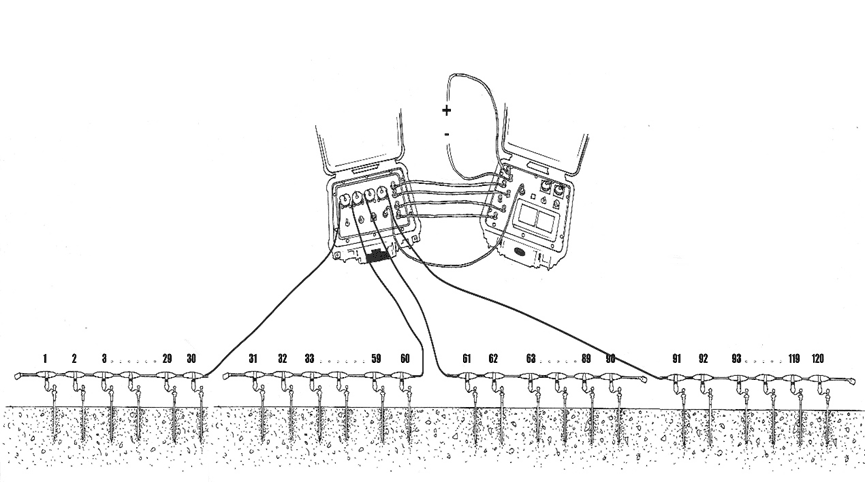

Support flexible configuration combination

WERT-60: mainframe+ switcher (60 take-outs system)

WERT-120: mainframe + switcher (120 take-outs system)

WERT-60: mainframe+ switcher (60 take-outs system)

Mainframe	Earth resistivity/IP meter	Quantity: 1 set
Multi-channel converter	Electrode converter	Quantity: 1 set
Cable	Resistivity cable（30 take-outs）	Quantity: 2 pcs

Configuration plan two：WERT-120: mainframe+ switcher (120 take-outs system)

Mainframe	Earth resistivity/IP meter	Quantity: 1 set
Multi-channel converter	Electrode converter	Quantity: 1 set
Cable	Resistivity cable（30 take-outs）	Quantity: 4 pcs
Cable	Extension cable	Quantity: 2 pcs

Specifications

（一）WDJD-4 Multi-function Digital DC IP Instrument (Test and Control Host)

Receiving section

Item	Parameters
Voltage channel	±24V, ±0.4% ±1 word, 24-bit A/D
Input impedance	≥50MΩ
Apparent polarizability precision	±1% ± 1LSB
SP compensation range	±10V
Current channel	6A, ±0.4% ±1 LSB , 24-bit A/D
Current precision	If Ip≥ 10mA, ± 5‰ ± 1 LSB; If Ip< 10 mA, ±1% ± 1 LSB.
Suppression	≥80dB for 50Hz industrial frequency (common mode interference or differential mode interference)

Transmitter

Item	Parameters
Max transmitting power	4500W (for general Res/IP sounding); 1125W (for WERT-60/120, limited by switcher box).
Max voltage	±900V(for general Res/IP sounding); ±450V(for WERT-60/120, limited by switcher box).
Max current	± 5A(for general Res/IP sounding); ±2.5A(for WERT-60/120, limited by switcher box).
Pulse width	1~60s, duty ratio 1:1

Other parameters

Item	Parameters
Storage capacity	≥1GB
Instrument power supply	Built-in lithium battery, can work continuously for more than 30 hours
Host interface	A, B, M, N, DC high voltage, external battery and charging, 2 interfaces with distributed high-density cables, RS-232 and USB, etc.
Working temperature	-10℃~+50℃, 95%RH
Storage temperature	-20℃~+60℃
Dimension (L×W×H)	270mm×246mm×175mm

（二）WDZJ-60/WDZJ-120 multi-channel electrode converter (multiple converters can be used in series to expand the number of system electrodes)

Item	Parameters
Max electrode connected	60 and 120 (for option)
Insulation impedance	≥500MΩ
Max working voltage	500VDC
Max working current	2.5ADC
Power supply	Internal 7.4V 4AH rechargeable lithium battery, for continuously 25 hours
Working temperature	-10°C~+50°C
Weight	5.8Kg (for WERT-60) 9.2Kg(for WERT-120)
Dimension	340mm × 295mm × 152mm (for WERT-60) 470mm × 357mm × 176mm (for WERT-120)

（三）Centralized two-dimensional high-density resistivity cable (optional)

Item	Parameters
Cable	32 cores, outer diameter Φ6mm
Number of each converter	2 (30 electrode taps/electrode), special requirements are specified by the user when ordering
Tap spacing	specified by the user when ordering (usually 5m or 10m)
Cable insulation	insulation between any two core wires ≥500MΩ/500V

（四）Centralized two-dimensional high-density resistivity electrode (optional)

Case Study

Item	Parameters
Electrode qty	30 pcs
Copper electrod	Φ12mm×280mm, with plug-in card
Number Quantity	Specified by the user when ordering

Case Study

2D data inversion

Application with wenner array from Albania

Gold exploration from Madagascar
