JJY-3D 3-Arm Caliper Probe | Geotech Instrument Co., Ltd.

PRODUCT PARAMETERS

The motor retracts and extends the borehole arm, and monitors the entire retraction and extension process, which is safe and reliable.
t can be used in combination with the FD-3019 gamma logging tool. The measured borehole diameter and liquid level information can be used as correction parameters for gamma logging data.

GET A QUOTE

Description

FAQ

Get A Quote

Description

Abstract

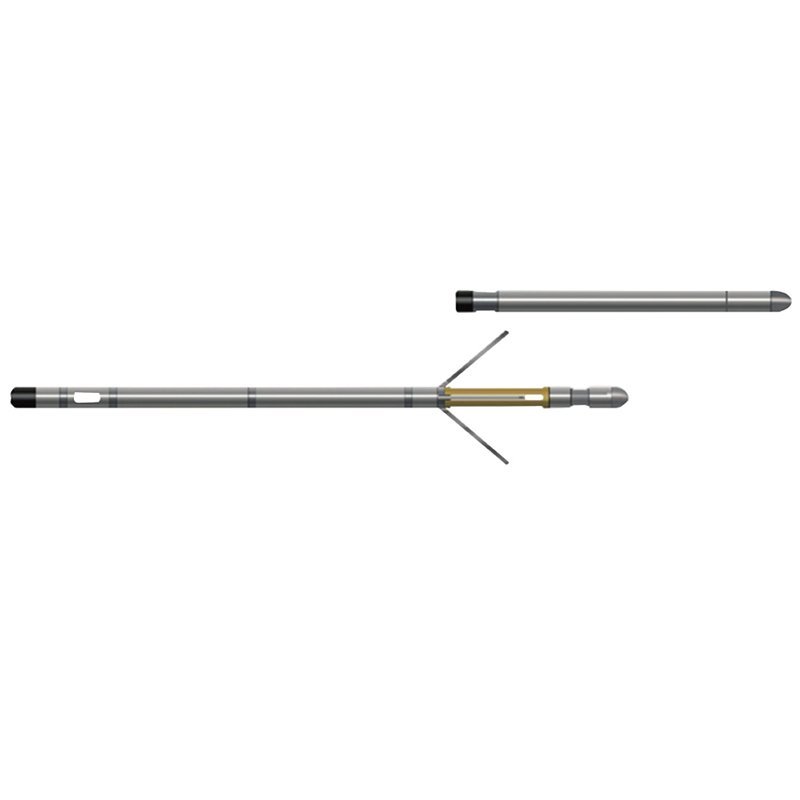

JJY-3D 3-Arm Caliper Probe is a caliper that measures with a mechanical arm contact method. The three caliper arms are connected to the zero temperature drift linear sensor through a dynamic seal piston, which converts the caliper change into a digital quantity and then transmits it to the ground through encoding. It is also equipped with a liquid level detection electrode to detect the liquid level depth in the borehole. Liquid level depth information and caliper information are important parameters for hydrological survey logging.

Applicable Conditions

● Bare hole fill with water or mud

● Bare Dry hole

Applications

● Rock formation integrity assessment

● Location of cracks and caves

● Calculation of borehole volume before cementing

● Drillhole diameter measurement and correction calculation in conjunction with other well logging

Features

● The motor retracts and extends the borehole arm, and monitors the entire retraction and extension process, which is safe and reliable.

● t can be used in combination with the FD-3019 gamma logging tool. The measured borehole diameter and liquid level information can be used as correction parameters for gamma logging data.

Specifications

Well diameter measurement method	Three-arm linkage, Contact type
Well diameter measurement range	Φ40~300mm
Measurement error	1.5% F.S
The opening method of the well diameter arm	Controlled by ground command, and the motor executes the retracting and retracting command
	Nuclear industry quantitative gamma FD-3019 probe interface (special order required)
Signal output	Bipolar encoding
