What Is an ERT Instrument? ERT Instruments: Electrical Resistivity Tomography Guide
Overview：An ERT instrument delivers high-resolution subsurface resistivity imaging for geophysical investigations. This guide explains Electrical Resistivity Tomography operating principles and evaluates ERT instrument performance across hydrogeological, engineering and archaeological Electrical Resistivity Tomography applications.
Ⅰ. Overview of ERT Instruments
1. Core Definition

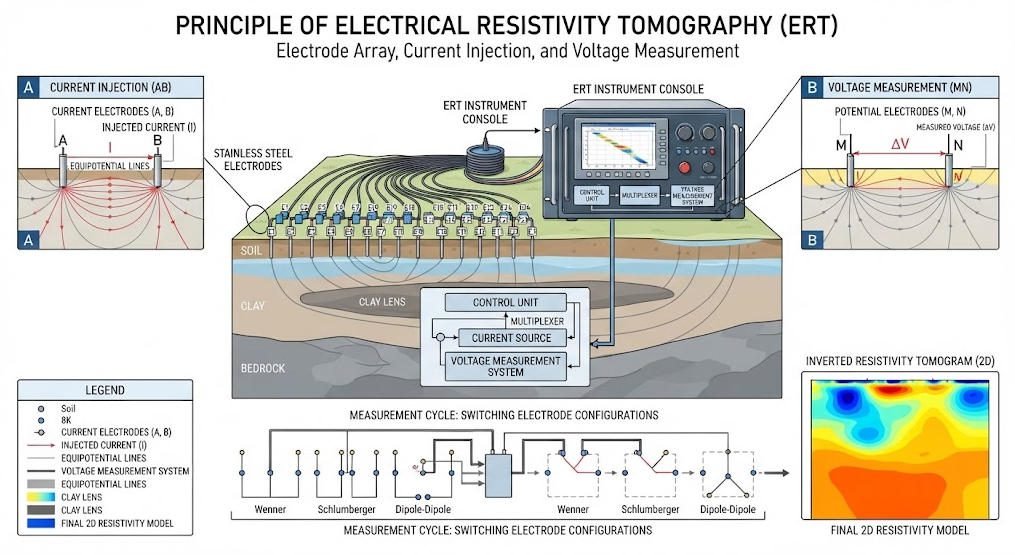

An ERT (Electrical Resistivity Tomography) instrument is a multi-channel geophysical tool that maps subsurface electrical resistivity variations through controlled current injection and sequential voltage measurement. It combines automated multi-electrode switching, high-precision data acquisition and advanced inversion algorithms to generate 2D or 3D images of subsurface geological structures. The method resolves resistivity contrasts associated with fluid content, lithology, porosity and mineralogy.
ERT systems operate on the fundamental relationship between current, voltage and formation resistivity. Apparent resistivity values are calculated from measured voltage, injected current and a geometric factor based on electrode configuration. Inversion processing converts apparent resistivity values into quantitative spatial models of true subsurface resistivity.
2. Core Technical Variants
ERT instruments support three primary acquisition modes, each optimized for different survey objectives. High-Density Resistivity (HDEM) uses dense multi-electrode arrays for centimeter-resolution near-surface imaging. DC Sounding delivers 1D vertical resistivity profiling for depth-dependent layer characterization. Integrated Induced Polarization (IP) mode adds chargeability measurement for enhanced material discrimination.
High-Density Resistivity provides the highest lateral resolution for detailed near-surface imaging. DC Sounding offers the greatest depth penetration for layered geological settings. Full ERT tomography delivers 2D/3D structural imaging for complex subsurface targets.
Ⅱ. Method Comparison and Performance
1. Comparative Technical Specifications

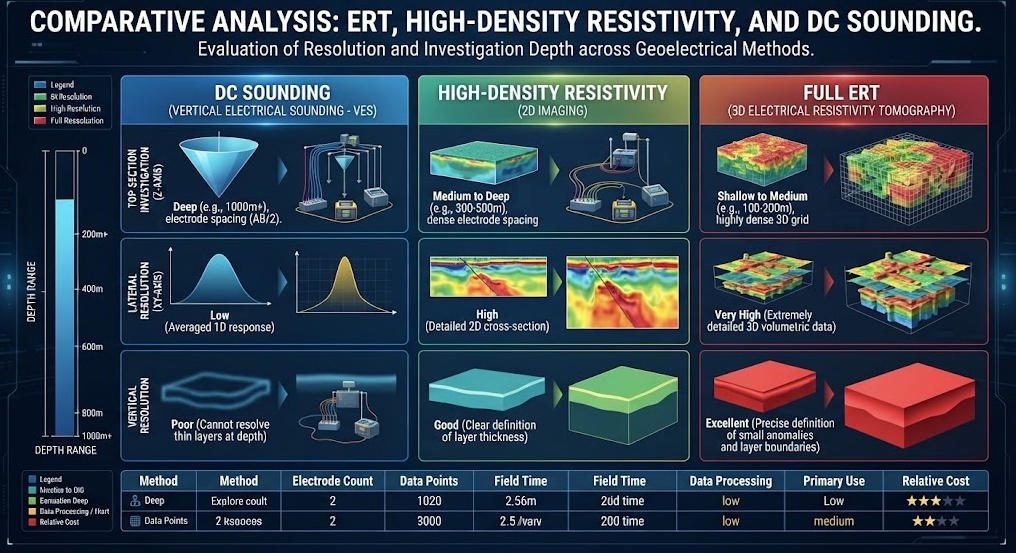

The three primary ERT operating modes differ significantly in dimensionality, resolution and optimal application.
| Parameter | Full ERT Tomography | High-Density Resistivity | DC Electrical Sounding |
|---|---|---|---|
| Data dimensionality | 2D/3D volumetric imaging | 2D cross-sectional profiling | 1D vertical profiling |
| Lateral resolution | Decimeter to meter scale | Centimeter to decimeter scale | Meter scale |
| Vertical resolution | Moderate to high | High near surface | Low to moderate |
| Depth range | 5 – 500 m typical, up to 1500 m high-power | 1 – 50 m | 10 – 500 m |
| Noise resistance | High, built-in filtering | Lower, sensitive to near-surface noise | Moderate |
| Survey speed | Moderate, automated switching | Fast, dense sampling | Slow, manual expansion |
| Best for | Faults, caves, complex structures | Aquifer mapping, soil layering | Mineral deposits, bedrock depth |
2. Depth and Resolution Performance
Depth of investigation and resolution vary systematically with electrode spacing and array type. Larger electrode spacing increases depth but reduces spatial resolution. Denser arrays deliver higher resolution at shallower depths.
For standard 2D ERT surveys, depth of investigation is approximately 15–20% of total array length. High-density near-surface arrays achieve decimeter resolution in the upper 5–10 meters. Deep sounding configurations with large electrode spreads can exceed 500 meters depth in resistive formations.
Depending on geological conditions, actual depth may vary from nominal values. Conductive formations reduce effective depth due to current channeling. Resistive crystalline bedrock allows deeper penetration for equivalent array length.
3. IP Integration Capability
Many ERT instruments integrate induced polarization measurement capability alongside standard resistivity. IP mode measures chargeability of subsurface materials by recording voltage decay after current shut-off. This provides complementary information that helps discriminate between different causes of low resistivity.
IP integration adds particular value in mineral exploration and contamination mapping. It helps distinguish sulfide mineralization from clay or brine. Combined resistivity and IP data reduce interpretation ambiguity and improve survey confidence.
Ⅲ. Primary Field Applications
1. Hydrogeological Exploration
ERT instruments are standard tools for groundwater and hydrogeological site investigation. They map aquifer geometry, saturation patterns and water quality variations. Resistivity contrasts clearly distinguish water-bearing zones from impermeable clay or rock units.
In mountainous terrain, ERT has identified concealed aquifers that more than tripled well yield in case examples. The method also maps saltwater intrusion in coastal aquifers through strong conductivity contrasts. Time-lapse ERT monitors recharge, depletion and seasonal groundwater level changes.
2. Geotechnical and Geohazard Monitoring
Geotechnical applications include slope stability, landslide monitoring and foundation site characterization. ERT detects changes in pore water pressure, moisture content and soil structure that precede failure. Real-time monitoring systems can provide early warning of developing slope instability.
In highway slope monitoring, real-time ERT detected pore pressure changes that preceded a landslide event. The method also maps karst features, voids and subsidence hazards for engineering design. It provides continuous data between widely spaced boreholes, reducing interpolation risk.
3. Archaeological and Heritage Investigation
ERT supports non-invasive archaeological prospection and heritage site investigation. It maps buried structures, chambers, ditches and occupation layers without excavation. High-density near-surface arrays resolve small features at shallow depths.
In heritage applications, ERT has mapped hidden chambers in pyramids and other monuments without disturbance. It preserves cultural resources while providing detailed subsurface information. The method is standard for pre-development archaeological assessment.

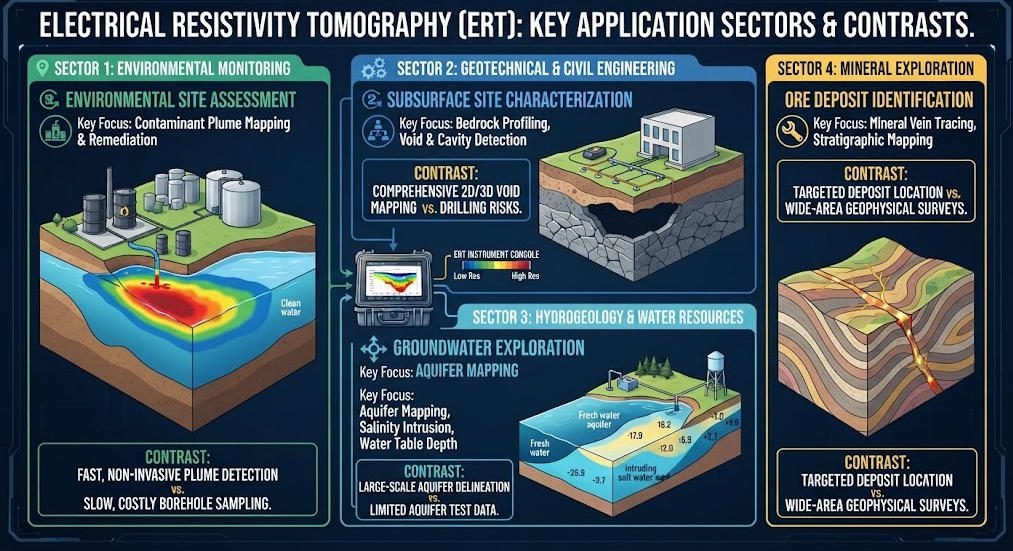

4. Additional Application Sectors
| Application Sector | Primary ERT Mode | Key Resistivity Contrast |
|---|---|---|
| Groundwater exploration | 2D ERT, DC sounding | Saturated vs dry formations |
| Contamination mapping | High-density ERT | Conductive contaminants vs background |
| Landslide monitoring | Time-lapse ERT | Moisture vs dry soil |
| Archaeological prospection | High-density near-surface | Buried features vs soil matrix |
| Mineral exploration | Deep ERT + IP | Sulfide vs host rock |
Ⅳ. Data Processing and Inversion
1. Forward Modeling
Forward modeling simulates theoretical resistivity responses for assumed subsurface models. It calculates expected apparent resistivity values for specific electrode configurations and subsurface resistivity distributions. Forward models are used to test survey designs and generate reference for inversion.
Advanced ERT software includes built-in forward modeling capabilities. Models can incorporate topography, complex array geometries and known geological constraints. This improves inversion accuracy and reduces interpretation ambiguity.
2. Inversion Algorithms

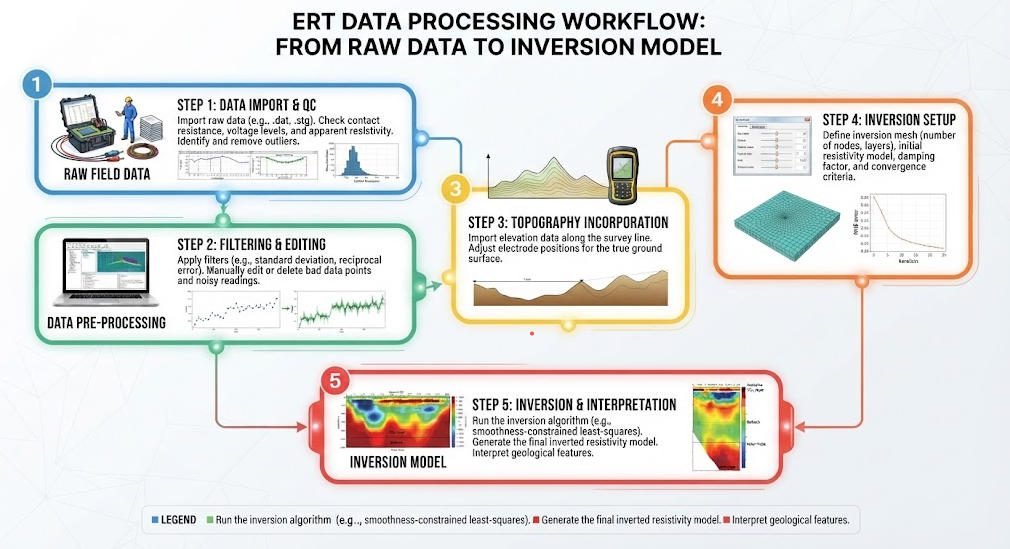

Inversion algorithms convert raw apparent resistivity data into quantitative subsurface resistivity models. They iteratively adjust a model resistivity distribution until its forward response matches measured data. Regularization controls model smoothness and prevents overfitting of noisy data.
Modern inversion packages produce 2D or 3D resistivity volumes with quantified uncertainty. They support both smooth and sharp boundary inversion styles. Processing software like Res2DInv and EarthImager are standard industry tools.
3. Validation and Calibration
ERT results require validation against independent data for reliable interpretation. Borehole logs, CPT data and seismic surveys provide ground truth for calibration. Cross-validation between methods improves confidence in interpreted features.
Instrument calibration verifies current output and voltage measurement accuracy. Field procedures include repeat measurements and control stations for quality control. All interpretations should acknowledge resolution limits and inversion non-uniqueness.
Ⅴ. ERT Instrument Selection and Performance
1. Key Performance Specifications
Professional ERT instruments are specified by several core performance parameters. These determine suitability for different survey types and field conditions.
| Specification | Professional Grade Value | Technical Significance |
|---|---|---|
| A/D conversion | 24-bit | High dynamic range, low noise |
| Resistivity measurement range | 0.1 – 10,000+ Ω·m | Covers all common geological materials |
| Maximum channels | 10+ synchronous | Multi-electrode array support |
| Depth capability | Up to 1,500 m high-power | Deep exploration capability |
| Environmental rating | IP67 | Waterproof, field-ready |
| Operating temperature | -20°C to +60°C | Wide environmental tolerance |
| IP capability | Integrated optional | Chargeability measurement |
2. GIM Series ERT System Advantages
The GIM Series high-density resistivity and IP testing system integrates multiple key advantages for field exploration. 10-channel synchronous acquisition with rolling measurement mode captures multi-electrode data in a single setup. This dramatically improves survey efficiency compared to manual switching systems.
The system supports cross-hole, underwater and 3D distributed cabling configurations. It exports standard TXT/Excel formats compatible with mainstream inversion software. IP67 waterproof rating and wide temperature range ensure stable performance in extreme field environments. 24-bit high-precision A/D conversion and bi-directional cascading technology extend effective depth to 1,500 meters.
3. Selection Guidance by Application
Select ERT instrument configuration based on project objectives and site conditions.
- For detailed near-surface engineering or archaeological surveys, select high-density near-surface arrays.
- For regional hydrogeological or deep mineral surveys, select deep sounding and 2D ERT configurations.
- For mineral or contamination discrimination, select systems with integrated IP capability.
- For long-term monitoring programs, select systems with automated acquisition and remote data access.
Match channel count and electrode count to required resolution and survey size. Larger arrays require more channels but deliver more detailed imaging. Modular systems allow expansion as survey requirements evolve.
