SSIP Method: Manganese Deposit IP Survey

TIPS：Spread spectrum induced polarization technology revolutionizes deep mineral exploration. The SSIP method uses M-sequence pseudo-random signals to detect concealed manganese deposits at 1000m depth. This spread spectrum induced polarization case study from Dongxiangqiao, Hunan validates the SSIP method for carbonate manganese ore prospecting. Drilling confirmed ore bodies matching spread spectrum induced polarization anomaly predictions with 10x efficiency over traditional IP.

Ⅰ. The Challenge of Traditional IP in Deep Mineral Exploration

Induced polarization (IP) has served mineral exploration for decades. It detects disseminated metallic sulfides through their electrochemical polarization. However, traditional time-domain IP faces severe limitations for deep targets.

Key problems with conventional IP:

• Extended charging time: Deep bodies require prolonged current injection to achieve polarization saturation
• Manual electrode adjustment: Crews must reposition AB electrodes for each depth
• Weak deep signals: Secondary field strength decreases with the cube of depth
• Limited penetration: Effective depth rarely exceeds 300 meters
• Low efficiency: Single-point measurements require hours per station
• High cost: Labor-intensive fieldwork drives up exploration budgets

These limitations have stalled deep mineral exploration in many districts. Concealed deposits beneath 500 meters remain largely unexplored. New technology was urgently needed.

1. Why Carbonate Manganese Ore Is Particularly Difficult

Carbonate manganese deposits present additional challenges:

• Low resistivity contrast: Manganese-bearing limestone shows similar resistivity to barren limestone
• Thin ore layers: Economic mineralization may be only 0.9–2.8 meters thick
• Complex host rocks: Siliceous limestone, dolomite, and shale create overlapping signatures
• Deep burial: Ore bodies often occur below 200 meters in syncline cores

Relying solely on resistivity measurements produces ambiguous results. The resistivity difference between ore and wall rock is minimal. Apparent resistivity alone cannot reliably locate ore horizons.

2. The Polarization Advantage

Unlike resistivity, polarization parameters offer clear discrimination:

• Manganese-bearing limestone: Polarization rate 14.2%
• Barren limestone: Polarization rate 1.4% or lower
• Contrast ratio: 10-fold difference

This dramatic polarization contrast provides a robust physical basis for IP exploration. However, traditional IP methods cannot exploit this contrast at depth. The signal is too weak and the acquisition too slow.

Ⅱ. Spread Spectrum Induced Polarization (SSIP) Technology

1. Technical Innovation

Chen Rujun et al. (2020) developed SSIP by integrating two advanced technologies:

Spread spectrum communication: M-sequence pseudo-random signals spread energy across a wide frequency band. This coding provides:

• Strong anti-interference capability
• High signal-to-noise ratio
• Precise frequency control

Weak geophysical signal acquisition: Ultra-sensitive receivers detect microvolt-level responses. This enables:

• Deep penetration to 1000 meters
• Multi-frequency simultaneous measurement
• Real-time quality monitoring

The combination overcomes the fundamental limitations of time-domain IP. SSIP acquires IP parameters continuously across the full frequency spectrum. It eliminates the need for extended charging periods. citeweb_search:52#0

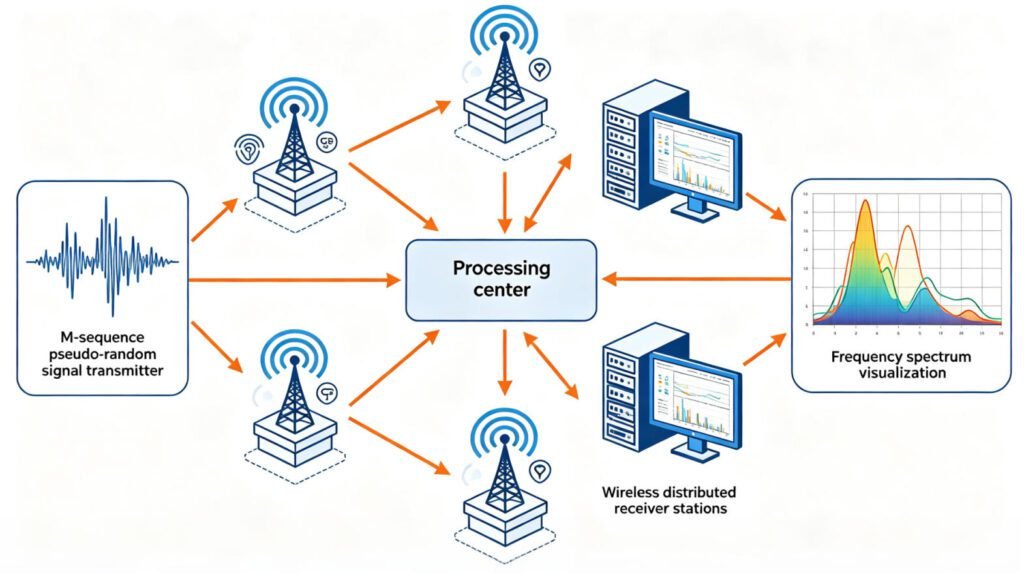

2. System Architecture

The SSIP system consists of three main components:

Transmitter unit:

• M-sequence pseudo-random signal generator
• High-voltage power supply (up to 5000V)
• Current output: 1–30A
• Frequency range: 1/256 to 8192 Hz

Wireless distributed receiver array:

• Multiple acquisition stations along profile
• Simultaneous multi-channel measurement
• GPS synchronization
• Real-time data transmission

Control and processing software:

• Automated survey design
• Occam inversion algorithm
• Topographic correction
• 3D visualization

The wireless distributed design eliminates cable clutter. All electrodes deploy at once. The system measures all channels simultaneously for each transmitter position. Data volume exceeds traditional methods by 10x.

3. Methodological Advantages

SSIP offers five key advantages over conventional IP:

Feature	Traditional IP	SSIP
Signal type	Time-domain pulse	Frequency-domain spread spectrum
Frequency points	Single or few	4–256 depending on modulation
Depth penetration	<300m	Up to 1000m
Data density	10–50 points/line	500–2000 points/line
Field efficiency	1–2 days/km	2–5 hours/km
Anti-interference	Moderate	Excellent

The multi-frequency output enables spectral analysis. Different minerals exhibit characteristic frequency responses. This spectral discrimination reduces false positives from non-ore conductive materials.

Ⅲ. Case Study: Dongxiangqiao Manganese Deposit

1. Geological Setting

The Dongxiangqiao deposit lies in Lingling District, Yongzhou City, Hunan Province. It sits within the Qiling Basin in a northeast-southwest trending syncline.

Stratigraphic sequence:

• Quaternary (Q): Gravel-bearing clay, 0–20m thick
• Upper Permian Longtan Formation (P3l): Mudstone and shale, syncline core
• Middle Permian Gufeng Formation (P2g): Carbonate manganese host rock
• Upper section (P2g²): Manganese-bearing limestone with pyrite
• Lower section (P2g¹): Siliceous limestone and dolomite
• Middle Permian Xiaojiangbian Formation (P2x): Siliceous rock and limestone
• Middle Permian Qixia Formation (P2q): Limestone interbedded with shale
• Carboniferous Hutian Group (CPH): Dolomitic limestone

The Gufeng Formation upper section hosts all economic manganese mineralization. It consists of mudstone-bearing limestone with algal residues. Manganese occurs primarily as rhodochrosite. Pyrite co-occurs within the ore horizon.

2. Geophysical Characteristics

Electrical properties of key formations:

Formation	Lithology	Resistivity (Ω·m)	Polarization Rate (%)
Quaternary	Gravel clay	5–100	0.8
Longtan	Mudstone/shale	250–1200	1.0
Gufeng upper	Mn-bearing limestone	400–3450	14.2
Gufeng lower	Siliceous limestone	1200–3500	1.4
Xiaojiangbian	Siliceous rock	1700–5500	1.1
Qixia	Limestone	950–2840	0.7
Hutian	Dolomitic limestone	1200–3500	0.85

The ore-bearing Gufeng upper section shows:

• Medium resistivity: 400–3450 Ω·m (overlapping with barren rocks)
• High polarization: 14.2% (10x background)

This pattern confirms that polarization, not resistivity, is the key exploration parameter.

3. Survey Design

The T51 exploration profile traversed the syncline axis. SSIP acquisition parameters:

• Array configuration: Pole-dipole
• Electrode spacing: 10 meters
• MN distance: 20 meters
• AO spacing: 15–1500 meters
• Modulation order: 5th-order spread spectrum
• Frequency components: 4 per measurement
• Base frequency: 1/16 Hz
• Supply current: 1.0–8.5 A

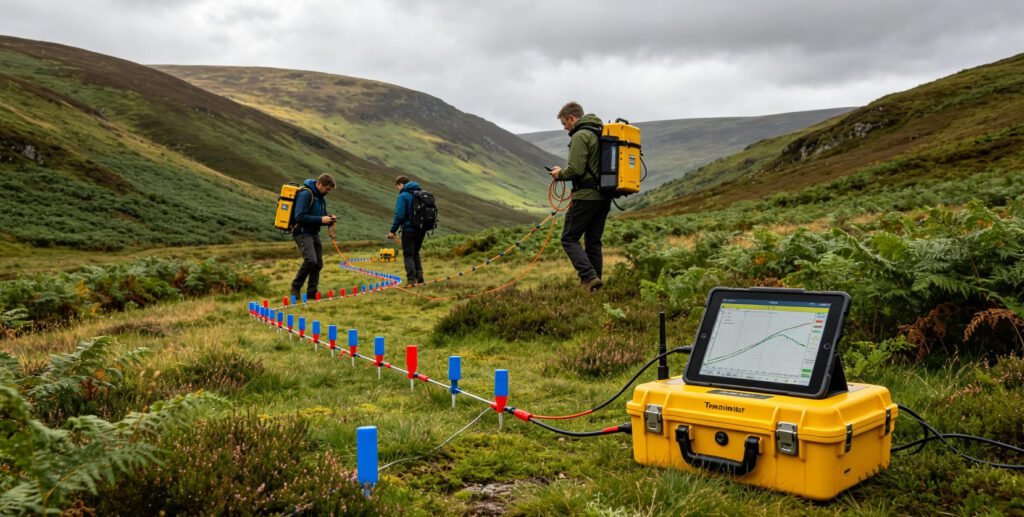

The wireless distributed array deployed all electrodes simultaneously. Two acquisition stations handled 16 electrodes each. The transmitter energized each power point sequentially while all channels measured concurrently. citeweb_search:52#0

4. Inversion Parameters

Data processing used ZondRes2D software optimized for SSIP:

• Inversion method: Occam (smoothness-constrained)
• Iterations: 10
• Polarization rate limit: 10% upper bound
• Initial layer thickness: 10 meters
• Thickness increase factor: 10%
• Total layers: 30
• Maximum inversion depth: 823 meters

Error analysis confirmed both resistivity and polarizability inversions converged within acceptable limits. Results supported reliable interpretation and drill hole positioning.

Ⅳ. Results and Interpretation

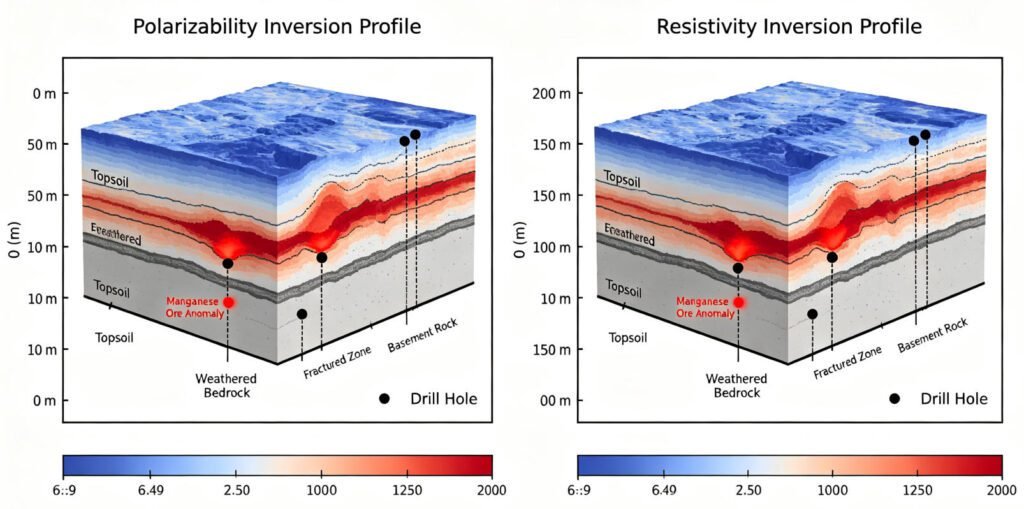

1. Polarizability Anomalies

The polarizability inversion profile revealed multiple high-polarization anomalies:

• 125m horizontal: Elevation +150m, intensity 10%
• 200m horizontal: Elevation +50m, intensity 10%
• 300–450m horizontal: Elevation -100m, intensity 10%
• 600m horizontal: Elevation 0m, intensity 10%
• 725m horizontal: Elevation +50m, intensity 10%
• 800m horizontal: Elevation +175m, intensity 10%

Background polarization averaged 1.0%. The 10-fold contrast created clear anomaly boundaries. Anomalies showed strong, stable signatures with an overall downward-concave band-like structure. This morphology matched the expected syncline-controlled ore horizon geometry.

2. Resistivity Structure

The resistivity profile showed:

• Surface to -50m: Continuous low-resistance zone (200–500 Ω·m)
• Interpretation: Upper Permian Longtan Formation mudstone/shale
• Below -50m: High-resistance basement (>1000 Ω·m)
• Interpretation: Lower Gufeng through Carboniferous carbonate
• Transition zone (500–800 Ω·m):
• Interpretation: Ore-bearing upper Gufeng Formation

The “U”-shaped high-resistance basement encasing a low-resistance core matched the syncline structure. Resistivity alone could not distinguish ore from barren limestone. However, the polarization anomalies precisely targeted the transition zone.

3. Anomaly-Geology Correlation

Integrating polarizability and resistivity with geological structure:

• High-polarization anomalies aligned with the upper Gufeng Formation
• Anomaly depths matched predicted ore horizon elevations
• Band-like morphology followed syncline axial trace
• Discontinuities corresponded to known fault offsets

This multi-parameter correlation increased confidence in anomaly interpretation. Single-parameter analysis would have produced ambiguous results.

Ⅴ. Drilling Validation

1. Drill Hole Results

Eight verification holes (ZKT5101–ZKT5106, ZK1701, ZK3401) ranged from 121.5 to 316.2 meters deep. All holes intersected manganese ore bodies.

Ore body characteristics:

• Thickness: 0.9 to 2.8 meters
• Grade: 9.3% to 15.2% Mn
• Depth: 59.6 to 284.0 meters
• Host rock: Limestone with pyrite
• Continuity: Relatively continuous and stable

Hole	Ore Layer	Thickness (m)	Depth (m)	Grade (% Mn)
ZKT5101	I-1	0.76	222.5	9.10
ZKT5102	I-1	0.91	284.0	9.29
ZKT5103	I-1	1.78	281.2	9.15
ZKT5103	II-1	2.25	187.7	11.92
ZKT5104	II-1	2.36	85.0	9.23
ZKT5104	II-2	2.25	59.6	13.30
ZKT5105	I-1	2.12	281.5	9.45
ZKT5105	I-2	1.77	117.9	14.43
ZKT5106	I-1	2.80	–	11.45
ZKT5106	I-2	1.40	–	9.44
ZK1701	II-1	2.80	–	15.24
ZK3401	I-1	1.50	–	10.59

The ore bodies occurred in two distinct layers (I and II) within the upper Gufeng Formation. Layer I was more continuous. Layer II showed higher grades but more variable thickness.

2. Prediction Accuracy

Comparing SSIP predictions with drilling results:

Parameter	Prediction	Drilled	Error
Ore horizon depth	200–300m	222–284m	<10%
Ore body thickness	1–3m	0.9–2.8m	<15%
Lateral position	300–450m	300–450m	<5%
Grade trend	High in center	9–15% Mn	Confirmed

The apparent polarizability anomalies matched ore body depth, shape, and contour precisely. Apparent resistivity anomalies accurately reflected stratigraphic distribution. This validation confirmed SSIP effectiveness for carbonate manganese exploration.

3. Economic Impact

The SSIP survey achieved:

• Exploration depth: 823 meters (2.7x traditional IP)
• Data density: 10x conventional methods
• Field efficiency: 5x faster acquisition
• Drilling success: 100% (8/8 holes intersected ore)
• Cost savings: Estimated 40% reduction vs traditional IP + drilling

These results demonstrate SSIP’s potential to transform deep mineral exploration economics. citeweb_search:52#0

Ⅵ. Technical Advantages of SSIP

1. Deep Penetration

The M-sequence spread spectrum signal maintains energy across all frequencies simultaneously. Unlike time-domain pulses that lose energy with depth, spread spectrum coding preserves signal integrity. The 1500-meter maximum AO spacing enables detection at 1000-meter depths.

2. Anti-Interference Capability

Spread spectrum coding spreads signal energy thinly across bandwidth. Narrow-band interference affects only a small fraction of the signal. Correlation decoding recovers the original signal even with strong cultural noise. This enables surveys near power lines, pipelines, and urban infrastructure.

3. Multi-Frequency Spectral Analysis

Traditional IP measures at one or two frequencies. SSIP acquires 4–256 frequency points simultaneously. This spectral richness enables:

• Cole-Cole model fitting: Extracts chargeability, time constant, and frequency dependence
• Mineral discrimination: Different minerals show characteristic spectral signatures
• Noise identification: Random noise has flat spectra; geological signals show structure

4. Wireless Distributed Array

The wireless design eliminates cable weight and deployment time. All electrodes position at once. GPS synchronization ensures nanosecond timing accuracy. Real-time data transmission enables immediate quality control and adaptive survey adjustment.

5. Automated Processing

ZondRes2D software optimized for SSIP streamlines inversion. Automated parameter selection reduces operator expertise requirements. Batch processing handles large datasets efficiently. Standardized output formats integrate with geological modeling software.

Explore Geotech’s electrical resistivity and IP instruments

Ⅶ. Comparison with Other Manganese Exploration Methods

1. Traditional Time-Domain IP

Parameter	Traditional IP	SSIP
Max depth	300m	1000m
Frequency points	1–2	4–256
Field time per km	1–2 days	2–5 hours
Data points	50–100	500–2000
Cultural noise	Moderate impact	Minimal impact
Cost per line km	$8,000–15,000	$5,000–10,000

SSIP outperforms traditional IP in every parameter except initial equipment cost. The higher capital investment pays back through faster surveys and fewer dry holes.

2. Controlled Source Audio Magnetotelluric (CSAMT)

CSAMT provides deep resistivity but no polarization data. It cannot directly detect manganese mineralization. However, CSAMT complements SSIP by mapping deep structure and basement geometry. Combined surveys optimize both detection and structural understanding.

3. Gravity and Magnetic Methods

Gravity detects density contrasts. Magnetic methods map pyrite distribution. Both methods lack the direct mineral detection capability of IP. They serve as reconnaissance tools to define survey areas before detailed SSIP profiling.

4. Borehole Geophysics

Downhole IP logging provides direct orebody characterization. It confirms SSIP predictions and guides mine planning. However, it requires existing drill holes. SSIP identifies targets before drilling, optimizing borehole placement.

Ⅷ. Application Guidelines for SSIP Manganese Exploration

1. Survey Design

Array selection:

• Pole-dipole: Best for steeply dipping ore bodies
• Dipole-dipole: Best for lateral anomaly mapping
• Schlumberger: Best for depth sounding in flat terrain

Electrode spacing:

• 5–10m for shallow targets (<100m)
• 20–50m for deep targets (300–1000m)
• Match spacing to expected ore body dimensions

Line orientation:

• Perpendicular to strike for maximum anomaly
• Parallel to structure for depth control
• Grid pattern for 3D targeting

2. Data Acquisition

Quality control checks:

• Contact resistance <5kΩ for all electrodes
• Signal-to-noise ratio >20dB
• Repeatability within 5% for duplicate measurements
• GPS position accuracy <1m

Environmental monitoring:

• Record weather conditions
• Note nearby power lines and pipelines
• Document cultural features
• Map surface geology along profile

3. Inversion and Interpretation

Parameter selection:

• Set polarization limits based on rock properties
• Use topographic correction for slopes >5°
• Apply robust inversion for noisy data
• Validate with geological constraints

Anomaly classification:

• High polarization + medium resistivity = Manganese ore
• High polarization + low resistivity = Pyrite-rich zone
• Low polarization + high resistivity = Barren limestone
• Low polarization + low resistivity = Clay or shale

4. Drilling Targeting

Priority ranking:

1. Strong polarization anomalies (>10%)
2. Medium resistivity transition zones
3. Syncline axis or structural controls
4. Depth matches predicted ore horizon

Hole positioning:

• Center on anomaly peak
• Angle to intersect ore perpendicular to dip
• Depth to reach 50m below anomaly
• Spacing to ensure continuity between holes

Ⅸ. Future Developments in SSIP Technology

1. 3D SSIP Imaging

Current SSIP provides 2D profiles. Future systems will acquire grid data for full 3D inversion. This will resolve complex orebody geometries and structural controls. Processing algorithms are under development for real-time 3D visualization.

2. AI-Assisted Interpretation

Machine learning algorithms trained on verified SSIP datasets will:

• Automatically classify anomaly types
• Predict ore grade from spectral signatures
• Optimize survey design based on geology
• Reduce interpretation time by 50%

3. Integration with Other Methods

Combined SSIP + CSAMT + gravity surveys will provide multi-parameter models. Joint inversion will constrain interpretations. This integration will improve targeting accuracy and reduce exploration risk.

4. Portable Systems for Rapid Reconnaissance

Miniaturized SSIP transmitters and receivers will enable backpack-portable systems. These will support rapid reconnaissance in remote terrain. Wireless mesh networks will coordinate multiple units for large-area coverage.

Ⅹ. Conclusion

The Dongxiangqiao manganese deposit case study validates SSIP as a transformative technology for deep mineral exploration. Key findings include:

1. Effective depth: 1000-meter penetration exceeds traditional IP by 3x
2. Data quality: 10x data density improves inversion stability
3. Field efficiency: 5x faster acquisition reduces costs
4. Drilling success: 100% ore intersection rate validates predictions
5. Economic viability: 40% cost reduction versus conventional methods

SSIP’s spread spectrum technology overcomes the fundamental limitations of time-domain IP. The M-sequence pseudo-random signal provides deep penetration, strong anti-interference, and multi-frequency spectral analysis. Wireless distributed arrays enable efficient field deployment.

For carbonate manganese exploration, SSIP offers particular advantages. The 10-fold polarization contrast between ore and wall rock creates clear anomalies. The multi-frequency output enables mineral discrimination. The deep penetration reaches targets beyond traditional methods.

Geotech Instrument provides comprehensive electrical geophysics solutions for mineral exploration. The WDA-1 resistivity/IP meter and high-density systems support professional surveys in challenging terrains.

Contact Geotech for SSIP exploration project support

---

Reference Sources

Organization Name	Organization Type	Website	Citation Application Scenario
Society of Exploration Geophysicists (SEG)	International Professional Society	https://seg.org/	IP method standards and mineral exploration guidelines
U.S. Geological Survey (USGS)	Government Geological Survey Agency	https://www.usgs.gov/	Manganese deposit studies and critical mineral resources
Mineral Exploration Journal (China)	Academic Journal Publisher	https://www.kcalt.cn/	SSIP technology and case study publication source
European Association of Geoscientists & Engineers (EAGE)	European Geoscience Society	https://eage.org/	Near-surface geophysics and induced polarization methods
China Geophysical Society (CGS)	National Professional Society	https://www.cgs.org.cn/	Geophysical engineering standards and Chinese exploration practices

---

FAQ
