EM Resistivity Principles and Applications in Geophysics

Understanding EM Resistivity: Principles and Applications in Geophysics

In the vast realm of geophysics, electromagnetic (EM) resistivity stands as a cornerstone technique that has revolutionized our understanding of subsurface structures and properties. From archaeological digs to civil engineering projects and environmental monitoring, EM resistivity offers a versatile and powerful tool for exploration and analysis. In this article, we delve into the principles, applications, and future prospects of EM resistivity in the field of geophysics, while also introducing how Geotech Instrument Co., Ltd. contributes to this fascinating domain.

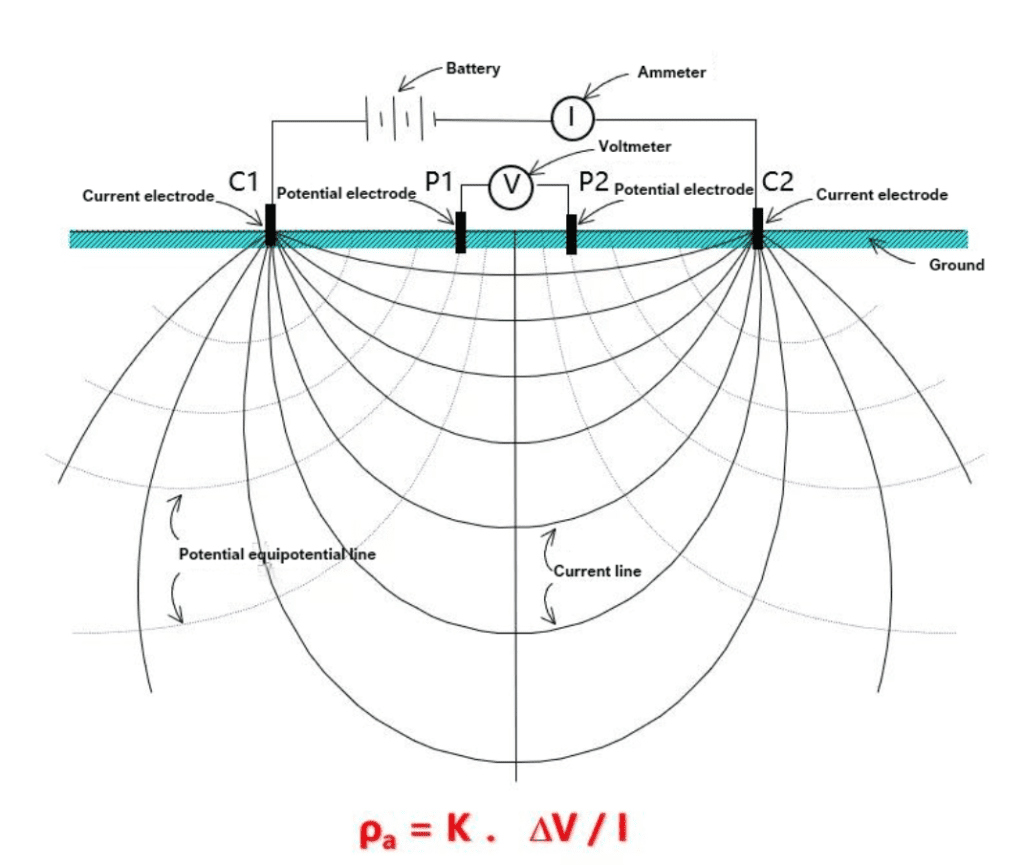

Electromagnetic resistivity principle diagram

Introduction to EM Resistivity

Definition and Importance in Geophysics

EM resistivity refers to the measurement of how well a material resists the flow of electric current under the influence of an electromagnetic field. In geophysics, it serves as a vital parameter for characterizing subsurface materials, helping scientists and engineers to identify different geological formations, locate resources, and assess site conditions. The importance of EM resistivity lies in its ability to provide non-invasive and relatively rapid subsurface information, making it an indispensable tool in various geophysical applications.

Historical Background

The concept of using EM methods for subsurface exploration dates back to the early 20th century. Over the decades, technological advancements have significantly improved the accuracy, efficiency, and applicability of EM resistivity measurements. Today, with the integration of sophisticated instruments and data processing techniques, EM resistivity has become a sophisticated and widely used geophysical method.

Principles of Electromagnetic Resistivity

Basic Concepts of Electromagnetic Fields

EM resistivity is rooted in the principles of electromagnetic fields. When an alternating electromagnetic field is generated and transmitted into the ground, it interacts with subsurface materials, inducing secondary electromagnetic fields. The characteristics of these secondary fields are closely related to the resistivity of the materials, allowing us to infer subsurface properties through measurements.

Resistivity Measurement Techniques

There are several resistivity measurement techniques, including the Wenner array, dipole-dipole array, and pole-dipole array, among others. Each technique has its specific electrode configuration and application scenarios, enabling researchers to choose the most suitable method based on the survey objectives and site conditions.

Applications of EM Resistivity

Archaeological Investigations

EM resistivity has proven to be an invaluable tool in archaeological research. By detecting variations in subsurface resistivity, archaeologists can identify potential buried structures, such as foundations, walls, and graves, without the need for extensive excavations. This helps to preserve archaeological sites and provides valuable information for further studies.

Case Studies in Archaeology

For instance, in a particular archaeological site, EM resistivity surveys revealed anomalies corresponding to ancient building remnants. Subsequent excavations confirmed the findings, demonstrating the effectiveness of EM resistivity in archaeological investigations.

Civil Engineering and Infrastructure

In civil engineering and infrastructure projects, EM resistivity is widely used for site characterization, foundation investigation, and utility detection. It helps engineers to assess soil and rock conditions, locate underground utilities, and identify potential geohazards, thereby ensuring the safety and stability of construction projects.

Environmental Monitoring

EM resistivity also plays a crucial role in environmental monitoring. It can be used to detect contamination plumes, monitor groundwater quality, and assess soil pollution. By mapping subsurface resistivity variations, environmental scientists can gain insights into the distribution and movement of contaminants, supporting effective environmental management and remediation efforts.

Electrical Resistivity Imaging

Methodology and Techniques

Electrical resistivity imaging (ERI) is an advanced application of EM resistivity. It involves the acquisition of resistivity data at multiple points across a survey area and the subsequent creation of two-dimensional or three-dimensional images of subsurface resistivity distributions. This provides a more intuitive and detailed visualization of subsurface structures and features.

Advantages Over Traditional Methods

Compared to traditional geophysical methods, ERI offers several advantages. It provides higher resolution and more comprehensive subsurface information, allowing for more accurate identification of geological features and anomalies. Additionally, ERI is relatively quick and cost-effective, making it suitable for large-scale surveys.

Limitations and Challenges

Despite its numerous advantages, EM resistivity also faces some limitations and challenges. Factors such as electromagnetic interference, geological complexity, and data interpretation difficulties can affect the accuracy and reliability of EM resistivity measurements. However, continuous advancements in technology and methodologies are helping to mitigate these issues and enhance the performance of EM resistivity techniques.

Future of EM Resistivity Technologies

Integration with Other Geophysical Methods

The future of EM resistivity lies in its integration with other geophysical methods, such as seismic and magnetic surveys. By combining data from multiple techniques, scientists can obtain more comprehensive and accurate subsurface information, leading to better understanding and interpretation of geological phenomena.

Emerging Trends and Research Directions

Ongoing research is focused on improving the precision and efficiency of EM resistivity measurements, developing new data processing and inversion algorithms, and exploring novel applications in emerging fields such as renewable energy and mineral exploration. These efforts are expected to further expand the capabilities and applications of EM resistivity in geophysics.

At Geotech Instrument Co., Ltd., we are dedicated to providing high-quality geophysical exploration and engineering geophysical equipment, including a range of electromagnetic instruments. Our product system covers electrical, magnetic, seismic, and radar series, offering comprehensive solutions for various geophysical applications. With our commitment to excellence, competitive pricing, strict quality assurance, and thoughtful customer service, we strive to meet the diverse needs of our clients in the geophysical exploration industry.

If you are interested in learning more about EM resistivity or require geophysical exploration solutions, please visit our website at https://geotechcn.net/. Our team of experts is ready to assist you and provide tailored solutions for your specific projects.
