What is groundwater locator？

In today’s world, the rational development and utilization of water resources have become a global concern. As a vital source of fresh water, the exploration and positioning technology of groundwater play a crucial role in ensuring water supply and environmental sustainability. This article delves into the principles, methods, applications, and comparisons of groundwater locators, aiming to provide a comprehensive reference for professionals and decision-makers in related fields.

I. Definition and Principle of Groundwater Locator

A groundwater locator is a geophysical device used to detect underground water resources by measuring the electrical properties of subsurface materials, such as resistivity. Variations in resistivity are closely related to the type of subsurface medium, porosity, saturation, and fluid properties. High resistivity is typically associated with dry rocks or sands, while low resistivity may indicate clay or aquifers.

II. Key Methods of Groundwater Locator

(1) Electrical Exploration Methods

Electrical exploration is one of the commonly used methods in groundwater location, including the following:

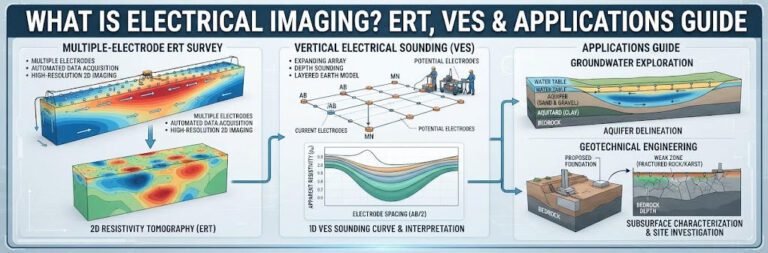

1. Electrical Resistivity Tomography (ERT): By arranging electrodes on the ground, injecting current into the subsurface, and measuring potential differences, ERT generates 2D or 3D images of subsurface resistivity distribution. This technology provides high-resolution information on underground structures and is suitable for various geological conditions.
2. Natural Potential Measurement: This method detects geological structures using natural electrical fields in the subsurface. It is cost-effective but may have limited resolution in complex geological conditions.
3. Induced Polarization (IP): IP measures the polarization effect of subsurface materials under electrical current to evaluate their charge storage capacity. It is particularly effective for detecting ore bodies and certain types of aquifers.

(2) Ground-Penetrating Radar Method

Ground-penetrating radar (GPR) detects underground structures by emitting high-frequency electromagnetic waves and receiving their reflections. It is highly effective for shallow geological exploration, especially for detecting underground voids, fractures, and shallow aquifers.

(3) Seismic Method

Seismic exploration uses artificially generated seismic waves to investigate subsurface structures. By analyzing reflected and refracted waves, it determines the depth, thickness, and physical properties of geological layers. This method is widely used for deep geological exploration but can be costly for shallow aquifer detection.

(4) Magnetic Method

Magnetic exploration identifies geological structures by measuring magnetic property differences in subsurface materials. Although its application in groundwater location is limited, it can provide information on geological structures and certain types of ore bodies that may be related to groundwater distribution.

III. Applications of Groundwater Locator

Groundwater locators are widely used in the following fields:

1. Hydrogeological Surveys: Locating and characterizing aquifers, assessing groundwater reserves and quality.
2. Environmental Monitoring: Tracking the spread of groundwater pollution and evaluating its impact on underground water resources.
3. Engineering Surveys: Evaluating foundation stability and groundwater levels in construction projects to prevent water-related risks during construction.
4. Agricultural Irrigation: Identifying underground water resources suitable for agricultural irrigation to improve water use efficiency.
5. Mining Exploration: Investigating groundwater conditions around ore bodies and assessing the impact of mining activities on groundwater.

IV. Comparison with Other Geophysical Methods

(1) Comparison with Ground-Penetrating Radar

• Advantages: GPR offers high resolution for shallow geological exploration and rapid data acquisition.
• Limitations: Limited application in deep exploration and complex geological conditions, and relatively high cost.
• Best Application Scenarios: Suitable for detecting shallow aquifers, underground voids, and fractures.

(2) Comparison with Seismic Method

• Advantages: Seismic methods provide high accuracy for deep geological exploration and detailed information on geological layers.
• Limitations: Complex equipment, high operational costs, and lower efficiency for shallow aquifer detection.
• Best Application Scenarios: Suitable for deep aquifer and complex geological structure exploration.

(3) Comparison with Magnetic Method

• Advantages: Magnetic methods are simple to operate, cost-effective, and capable of rapid data acquisition over large areas.
• Limitations: Limited direct detection capability for groundwater, mainly used for geological structure and ore body detection.
• Best Application Scenarios: Suitable for regional geological structure surveys and ore body detection.

(4) Advantages of Combined Surveys

Integrating groundwater locators with other geophysical methods can leverage the strengths of each, enhancing the accuracy and efficiency of groundwater resource exploration. For example, combining ERT with GPR provides high-resolution geological information from shallow to deep, while the joint application of seismic and magnetic methods enhances deep geological structure detection capabilities.

V. Advantages and Limitations of Groundwater Locator

(1) Advantages

1. Non-Destructive: Groundwater locators do not damage the subsurface environment, making them an eco-friendly exploration technology.
2. High Resolution: Electrical exploration methods like ERT provide detailed subsurface structural information, enabling precise aquifer identification.
3. Flexibility: Groundwater locators are suitable for various geological conditions and environments, capable of working in different terrains and climates.
4. Cost-Effective: Compared to traditional drilling methods, groundwater locators offer lower usage costs and can quickly acquire extensive geological information.

(2) Limitations

1. Data Interpretation Complexity: Professional knowledge and experience are required to interpret data from groundwater locators, especially in complex geological conditions where uncertainties may exist.
2. External Interference: Electrical exploration methods are susceptible to electromagnetic noise from external sources such as power lines and communication cables, which can affect data quality and accuracy.
3. Depth Limitations: Although methods like ERT can detect subsurface structures to a certain depth, they may not be sufficient for deep aquifer exploration in some cases.

VI. Case Studies

(1) Case Study 1: Groundwater Pollution Monitoring in an Industrial Area

In an industrial zone, a groundwater locator was used to monitor the spread of groundwater pollution. Through ERT technology, the distribution and migration pathways of the pollution plume were successfully mapped, providing scientific evidence for pollution remediation. Additionally, ground-penetrating radar was combined to further confirm the details of pollution spread in shallow layers, supporting the development of effective remediation plans.

(2) Case Study 2: Groundwater Exploration in an Arid Region

In an arid region with scarce water resources, traditional drilling methods were costly and inefficient. By combining ERT and IP methods, the groundwater locator quickly identified several potential aquifer locations. Subsequent drilling verification confirmed that these locations had abundant groundwater reserves and good water quality, providing a vital water source for local agricultural irrigation and residential use.

VII. Company Product Introduction

As a leading enterprise in geophysical exploration, we are proud to introduce the GIM Series, a multi-functional electrical exploration device. The GIM Series integrates natural potential measurement, 1D/2D/3D resistivity imaging (ERT), and induced polarization (IP) capabilities, offering a comprehensive solution for groundwater location.

(1) Product Features

• High-Precision Data Acquisition: 24-bit high-precision A/D conversion ensures accurate and reliable data for precise subsurface imaging.
• Depth Breakthrough: Bi-directional cascading technology overcomes traditional depth limitations in electrical exploration, achieving a detection depth of 1,500 meters to meet the needs of deep aquifer exploration.
• Strong Environmental Adaptability: With an IP67 waterproof design and a wide operating temperature range of -20°C to +60°C, the device ensures stable performance in extreme environments, whether in hot deserts or cold mountainous regions.
• Multi-Scenario Application: From groundwater pollution monitoring to ore body location, the GIM Series supports cross-hole, underwater, and 3D distributed cabling, making it suitable for various complex geological conditions and application scenarios.
• Efficient Data Collection: 10-channel synchronous acquisition + rolling measurement mode allows for the capture of multi-electrode data in a single setup, significantly improving work efficiency and reducing on-site working time.
• Data Compatibility: Data exported in TXT/Excel formats are compatible with mainstream inversion software (e.g., Res2DInv, EarthImager), facilitating further data processing and analysis by users.

(2) Success Cases

The GIM Series has performed excellently in numerous projects, successfully assisting clients in efficiently locating and exploring groundwater resources. For example, in a groundwater pollution monitoring project, the GIM Series used ERT technology to quickly and accurately map the distribution of the pollution plume, providing critical data support for pollution remediation. In a mining exploration project, the GIM Series, combined with IP methods, successfully detected groundwater conditions around ore bodies, offering important references for mining plans.

VIII. Future Outlook

With continuous technological advancements, groundwater locators are set to embrace new opportunities in the following areas:

1. Technology Integration: Further integration of multiple geophysical methods, such as ERT, IP, and GPR, to achieve more efficient and accurate groundwater resource exploration.
2. Intelligent Development: Incorporating artificial intelligence and machine learning technologies to enhance the automation and accuracy of data interpretation, reducing human errors.
3. Environmental and Sustainability Focus: Greater emphasis on environmental protection during exploration, developing more energy-efficient and eco-friendly devices to support sustainable water resource management.
4. Interdisciplinary Collaboration: Strengthening cooperation with disciplines such as hydrology, geology, and environmental science to jointly advance the development and application of groundwater resource exploration technologies.

IX. Conclusion

As an essential tool in modern geophysical exploration, groundwater locators are playing an increasingly important role in the rational development and protection of underground water resources. Through continuous technological innovation and practical applications, we believe that groundwater locators will make a greater contribution to addressing global water resource issues in the future. Choosing our GIM Series is choosing a reliable partner to explore the endless possibilities of underground water resources with us.
